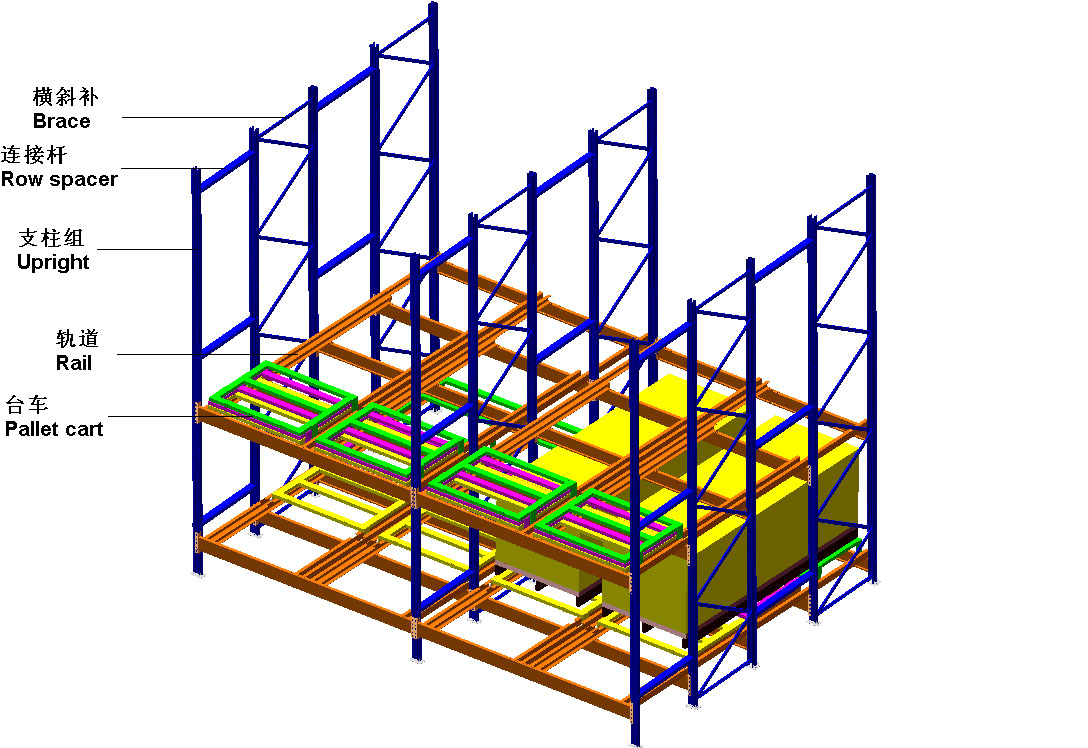

Push-Back (4D) Shelf
Push-Back (4D) Shelf
  • DESCRIPTION
  • 1.Upright:

    1.specification: 100*80*2.0
    2.Column hole distance:50mm
    3.colour:blue
  • 2.Pillar substrate:

    1.specification: 200*124*46
    2.colour:Galvanized
    3.Fixing method adopts inner expansion bolt
  • 3.4DPillar group:

    1.Pillar group height 7500mm
    2.specification:7500H*5000D*100*80*2.0
    3.Column hole distance:50mm
    4.colour:blue
    5.Hexagon socket screws are used for the fixation
  • 4.Cross beam A (cross beam B/C/D):

    1.The length of beam A is 2300mm
    2.Beam A: Single C beam
    3.Thickness of beam A: 3.0mm, excluding spray thickness
    4.Section specification:40mm*150mm
    5.Beam hanger: five-tooth heavy hanger
    6.Hanging film specifications:255*40*50*3.0
    7.Color: orange
  • 5.Track:

    1.The track length is 2300mm
    2.track:
    3.Track thickness: 3.0mm
    4.Section specification: 40mm*128mm
    5.Color: galvanized
  • 6.4D Trolley -1 / -2 / -3:

    1.4D Trolley-1 1125*1012
    2.4D Trolley-2 1125*1012
    3.4D Trolley-2 1200*1028
